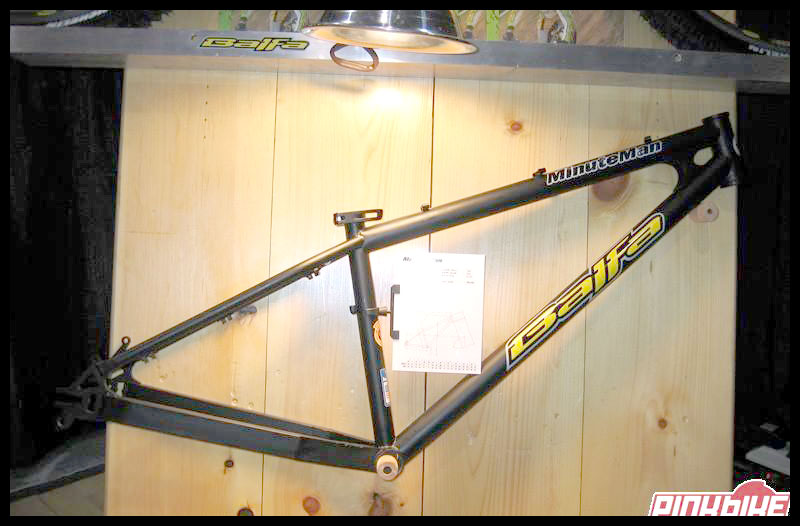

Balfa MinuteMan

FRAME OVERVIEW

MinuteMan is meant to be general "play bike" use. Has a reputation of an excellent freeride bike. It's also a very refined steel racer. Perhaps not as overbuilt as some options, but it's more conventional geometry and lighter weight make this more versatile then most of the other "play bike" frames on the market.

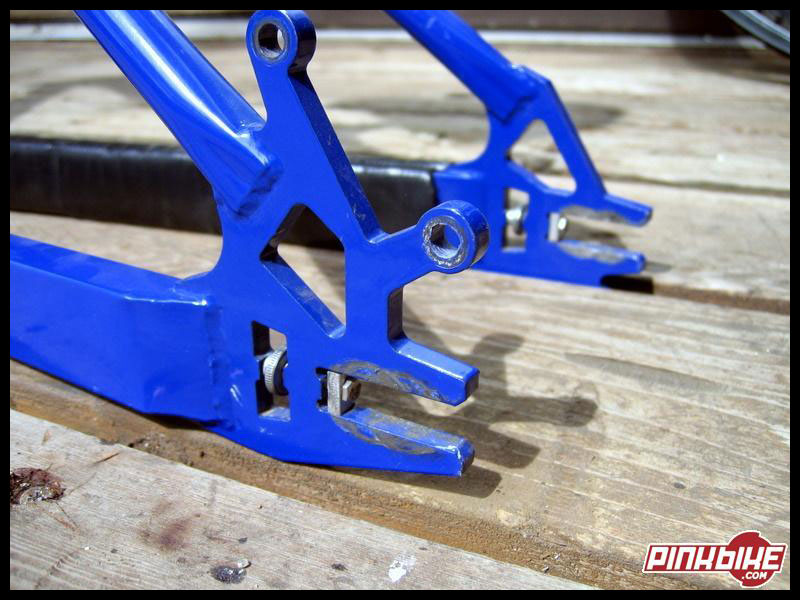

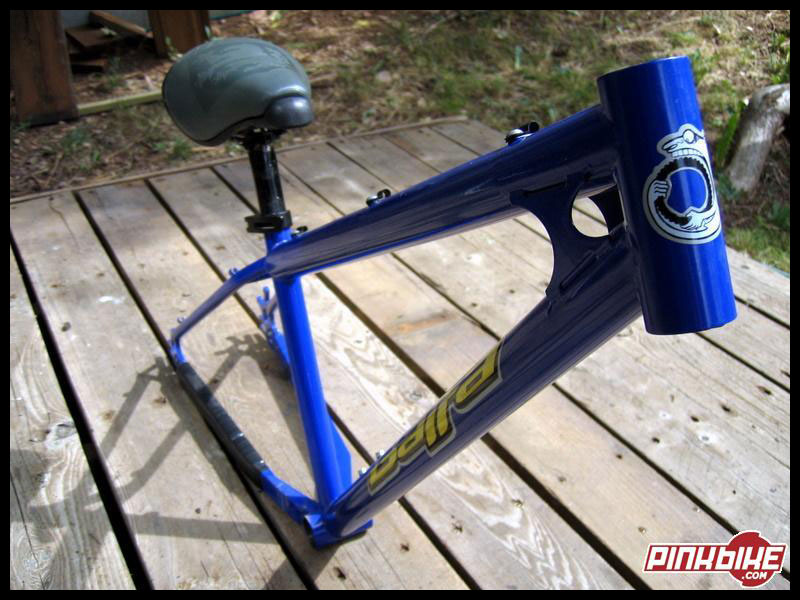

MinuteMan has Tig welded 4130 Cr-Mo tubing, headtube transfer gussets, tubular seatstay brace, 5/8" by 1 1/4" (16 x 32 mm) box section rear stays, welded unbraced yoke design for increased mud clearance. Notched drive side chainstay for increased drivetrain clearance, preserving the chain line.

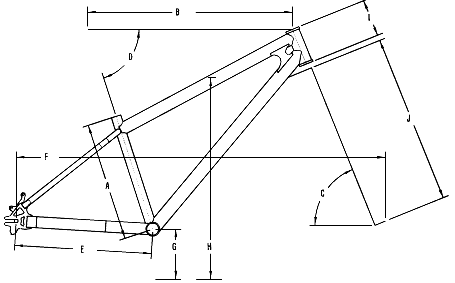

GEOMETRY

Imperial dimensions (inches)		SIZE
Imperial dimensions (inches)		Regular	Large
A	Seat Tube length	13.5
B	Top Tube length	22.3	23.3
C	Head Tube Angle	68°
D	Seat Tube Angle	72°
E	Chainstay Length	16.0*
F	Wheelbase	41.0	42.0
G	Bottom Bracket Height	12.4
H	Standover Height	29.5
I	Head Tube Height	4.25
J	Fork length	19.3

Metric dimensions (mm)		SIZE
Metric dimensions (mm)		Regular	Large
A	Seat Tube length	343
B	Top Tube length	563	591
C	Head Tube Angle	68°
D	Seat Tube Angle	72°
E	Chainstay Length	406*
F	Wheelbase	1050	1077
G	Bottom Bracket Height	314
H	Standover Height	750
I	Head Tube Height	108
J	Fork length	490
